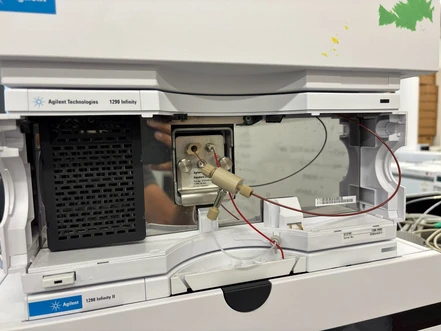

The Agilent 1290 Infinity Variable Wavelength Detector (VWD) is a high-performance UV detector designed for ultra-fast and high-throughput HPLC applications. With a data rate of up to 160 Hz, built-in run recovery functionality, and a range of flow cell options, it delivers superior sensitivity, robust data integrity, and operational flexibility for demanding chromatographic workflows.
Key Features
- High-speed acquisition: Data rate up to 160 Hz for ultra-fast HPLC compatibility.
- Wide wavelength range: 190–600 nm with deuterium lamp and built-in holmium oxide filter for accuracy.
- Run Recovery (DRC): Built-in CompactFlash card provides “data-never-lost” assurance during communication disruptions.
- Smart flow cells: Multiple cartridge options (standard, high pressure, micro, semi-micro) with RFID tagging for traceability.
- Improved stability: Electronic temperature control (ETC) minimizes baseline drift in fluctuating environments.
- Tool-free maintenance: Quick-access front panel for lamp and cell replacement.
- GLP/GMP compliant: Early maintenance feedback, electronic logs, and secure identification of critical components.
Technical Specifications
- Model number: G1314E
- Detection principle: Double-beam UV/VIS photometer
- Light source: Deuterium lamp with RFID tag
- Wavelength range: 190 to 600 nm
- Wavelength accuracy: ±1 nm
- Typical bandwidth: 6.5 nm
- Maximum data rate: 160 Hz
- Short-term noise: ±0.15 × 10⁻⁵ AU at 230 nm
- Drift: Less than 1 × 10⁻⁴ AU/h at 230 nm
- Linearity: Greater than 2.5 AU (5%) at 265 nm
- Flow cell options:
- Standard: 14 µL volume, 10 mm path, up to 40 bar
- High-pressure: 14 µL, 10 mm path, up to 400 bar
- Micro: 2 µL, 3 mm path, up to 120 bar
- Semi-micro: 5 µL, 6 mm path, up to 40 bar
- Flow cells include RFID tags for automated recognition and tracking
- Analog output: 100 mV or 1 V, adjustable range from 0.001 to 2 AU
- Operating temperature range: 0 to 55 °C
- Power requirements: 100–240 V AC ±10 %, 50/60 Hz, 85 W
- Dimensions: 140 × 345 × 435 mm (H × W × D)
- Weight: 11 kg
