The Shimadzu TOC-L series is a high-performance Total Organic Carbon (TOC) Analyzer designed for precise and reliable carbon analysis in various water samples, ranging from ultrapure water to highly contaminated water. Utilizing the 680°C combustion catalytic oxidation method with NDIR detection, it offers a wide measurement range and high sensitivity, making it suitable for industries including pharmaceuticals, environmental monitoring, food & beverage, and water treatment facilities.

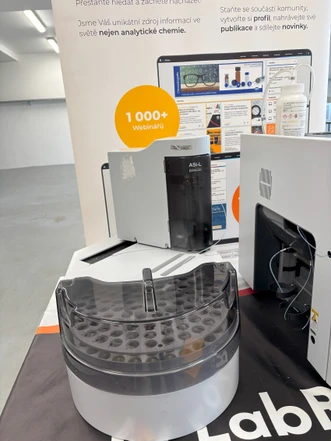

The ASI-L Autosampler complements the TOC-L by enabling automated, high-throughput sample analysis. It supports various vial capacities and provides efficient sample handling with features such as magnetic stirring to prevent sedimentation. This integration ensures streamlined workflow and enhanced analytical accuracy.
The system provides compatibility with additional units such as the TNM-L for Total Nitrogen (TN) measurement and the SSM-5000A for solid sample combustion analysis, enhancing its versatility.
Technical Specification
TOC-L Analyzer
- Measurement Method: 680°C combustion catalytic oxidation with NDIR detection
- Measured Parameters:
- Total Carbon (TC)
- Inorganic Carbon (IC)
- Total Organic Carbon (TOC = TC - IC)
- Non-Purgeable Organic Carbon (NPOC) (via acidification and sparging)
- Optional: Purgeable Organic Carbon (POC), Total Nitrogen (TN)
- Measurement Range:
- TC: 4 µg/L to 30,000 mg/L
- IC: 4 µg/L to 35,000 mg/L
- TN (with TNM-L unit): 5 µg/L to 10,000 mg/L
- Detection Limit:
- TC, IC: 4 µg/L (High-sensitivity model)
- TN: 5 µg/L (High-sensitivity model)
- Measuring Time:
- TC: ~3 minutes per sample
- IC: ~3-4 minutes per sample
- TN: ~4 minutes per sample
- Sample Injection: Automatic syringe pump with slide injection mechanism
- Gas Consumption:
- Carrier Gas: High-purity air or optional nitrogen gas
- Flow rate: 150-230 mL/min (variable sparging)
- Operating Conditions:
- Power Supply: 100-240V AC, 600VA
- Temperature Range: 5-35°C
- Data Output:
- USB, LAN (optional), and PC connectivity
- Compatible with LabSolutions TOC Software for data integrity and audit trail management
- Dimensions: W340 x D660 x H480 mm
- Weight: ~35 kg
ASI-L Autosampler
- Vial Compatibility:
- 9 mL (93 vials), 24 mL (93 vials), 40 mL (68 vials)
- Sample Injection:
- Direct injection into TOC-L system
- Optional Features:
- Magnetic stirrers to prevent sedimentation
- External sparging kit for improved NPOC measurement
- Operating Conditions:
- Power Supply: Same as TOC-L (integrated operation)
- Temperature Range: 5-35°C
- Dimensions: W370 x D540 x H490 mm
- Weight: ~14 kg
Additional Modules (Optional Upgrades)
- TNM-L Total Nitrogen Module: Enables simultaneous TOC and TN measurement
- SSM-5000A Solid Sample Unit: Allows TOC measurement in solid and high-suspended particulate samples
- OCT-L 8-Port Sampler: Provides additional automated sample handling options
This comprehensive system provides laboratories with an accurate and high-efficiency solution for TOC and TN analysis, ensuring compliance with regulatory requirements and high-quality analytical performance.
