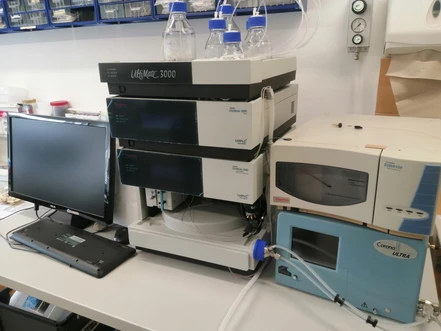

The Thermo Scientific HPLC with Corona Ultra Detector is an advanced system combining high-performance liquid chromatography with universal Charged Aerosol Detection (CAD) for broad and sensitive compound detection. This system can detect both volatile and non-volatile compounds, including those without UV chromophores, which are undetectable with traditional UV detectors. CAD provides a consistent response across different analytes, enabling precise quantification from trace to high concentrations. With minimal sample preparation required, compatibility with various solvents, and integration into most HPLC workflows, this system is ideal for labs needing accurate and efficient analysis in pharmaceuticals, food safety, environmental testing, and more.
This configuration includes:
- TS Ultimate 3000 Pump
- TS Ultimate 3000 Column Compartment
- Surveyor PDA Plus Detector
- Esa Corona Ultra Charged Aerosol Detector (70-8149R)
💡 Need another configuration? We are happy to provide the configuration you need for your application, individual modules or spare parts. Send us an inquiry.
Key Features:
- Universal Detection Capability
Detects virtually any non-volatile or semi-volatile compound, regardless of chemical properties, offering greater flexibility for a broad range of applications. - Charged Aerosol Detection (CAD)
Leverages CAD technology, enabling consistent and highly sensitive detection without dependency on a sample’s UV absorption, ideal for compounds without chromophores. - Wide Dynamic Range
Offers an extensive dynamic range for quantitative analysis across multiple compound concentrations, from low to high. - High Sensitivity & Stability
Detects analytes in the low nanogram range with minimal baseline drift, providing precise and stable measurements for reproducible results. - Minimal Sample Preparation
Reduces time and resource costs with minimal sample preparation requirements, making it efficient for routine and high-throughput analysis. - Compatible with Various Solvents
Adaptable to a range of mobile phases and solvents, allowing easy integration with different sample types and methods.
Technical Specifications:
TS Ultimate 3000 Pump
- Flow Rate Range: 0.001 to 10 mL/min
- Pressure Range: Up to 62 MPa (9000 psi)
- Gradient Formation: Binary, ternary, and quaternary
- Solvent Compatibility: Aqueous and organic solvents
TS Ultimate 3000 Column Compartment
- Temperature Range: Ambient +4°C to 85°C
- Temperature Accuracy: ±0.1°C
Surveyor PDA Plus Detector
- Wavelength Range: 190 nm to 800 nm (UV-Visible spectrum)
- Wavelength Accuracy: ±1 nm at 254 nm and 656 nm
- Resolution: 1.2 nm digital wavelength resolution
- Absorbance Range: 2.0 to +4.0 AU with 20-bit resolution
- Noise: ≤ 6 μAU/cm at 254 nm
- Drift: ≤ 1 mAU/h after warm-up
- Dimensions: 18 cm (H) × 36 cm (W) × 47 cm (D)
- Weight: 19.5 kg
- Power Requirements: 100/115 or 230 V AC, 50/60 Hz
Esa Corona Ultra Charged Aerosol Detector
- Detection Range: Broadly applicable to non-volatile and semi-volatile compounds, including small molecules, proteins, polymers, and lipids.
- Reproducibility: High reproducibility with typical relative standard deviations (RSDs) under 1%, and inter-unit variability averaging 2.5%.
- Sensitivity and Stability: Optimized for low drift and high stability, with baseline stability maintained for consistent and reproducible measurements.
- Integration: Fully compatible with HPLC and UHPLC systems, capable of seamless control with Thermo Scientific’s Chromeleon Chromatography Data System as well as third-party systems like ChemStation and Empower.
- Solvent Compatibility: Supports a wide range of solvents, with efficient solvent consumption that can reduce costs by up to 5–10 times in UHPLC applications.
- Additional Features: Includes an on-board flow diversion valve for high-salt samples and an optional variable-ratio flow splitter for integration with mass spectrometry (MS) or other detectors.
Key Advantages:
- Broader Detection Scope
Unlike traditional UV detectors, the Corona Ultra can detect compounds without chromophores, offering unmatched flexibility and a more comprehensive analysis for non-UV-absorbing compounds. - Enhanced Quantitative Accuracy
Charged aerosol detection provides a consistent response factor for a wide range of compounds, ensuring precise quantification across varying sample types. - Lower Detection Limits
Achieve reliable detection in low concentrations, improving trace analysis and allowing labs to work with smaller sample quantities. - Consistent, Reliable Results
With minimal sample preparation and advanced sensitivity, the Corona Ultra delivers reliable and reproducible data, optimizing workflows for high-throughput analysis.
