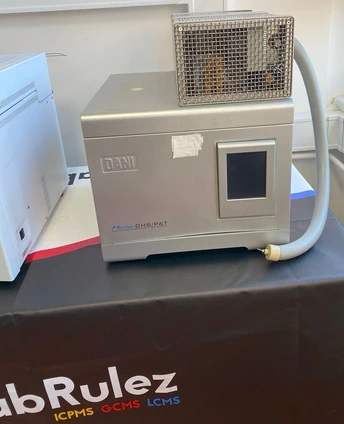

The Dani Master Purge & Trap (DHS/P&T) system is a versatile and sensitive solution for VOC analysis across multiple industries, providing excellent detection capabilities and integration with GC/GC-MS systems.
Key Features:
- Dynamic Headspace Sampling: Sweeps volatiles from the sample headspace using a precise flow of inert gas.
- Dual-Needle System: Focuses volatiles into an adsorbent-packed trap.
- Thermal Desorption: Rapidly desorbs analytes for introduction into the gas chromatographic column.
- Automated Operation: Fully automated system for high throughput and minimal manual intervention.
- Versatility: Suitable for both liquid and solid samples.
Technical Specifications:
Trap Characteristics
- Trap Material: Typically Tenax, carbon molecular sieve, or other VOC-adsorbing resins.
- Trap Dimensions: 1/8” diameter, approximately 20 cm length, packed with multiple adsorbent layers.
- Trap Temperature:
- Cooling: Down to -30°C (or ambient if no cryogenic cooling is used).
- Heating: Up to 350°C for rapid desorption of VOCs.
- Heating Rate: Up to 1000°C/min.
Purge Parameters
- Purge Gas: Helium or Nitrogen (99.999% purity recommended).
- Purge Gas Flow Rate: Adjustable from 5 mL/min to 500 mL/min.
- Purge Time: Configurable between 1 to 20 minutes depending on the sample and required sensitivity.
- Sample Volume: Up to 500 mL for water, or smaller for solid samples.
Desorption System
- Desorption Time: 1-2 minutes for complete VOC transfer to the GC column.
- Desorption Temperature: Up to 350°C.
- Trap Backflush: Ensures effective cleaning of the trap between analyses and prevents carryover.
Transfer Line
- Heated Transfer Line: Maintained between 100°C to 200°C to avoid condensation of VOCs.
- Length: Approximately 1 meter, designed to connect seamlessly with GC or GC-MS systems.
- Inert Coating: The internal surface is deactivated to prevent adsorption or interaction with analytes.
Physical and Environmental Specifications
- Power Supply: 110V or 220V, 50/60 Hz, 400-600W.
- Operating Temperature: 10°C to 40°C.
- Environmental Conditions: Humidity range 20% to 80%, non-condensing.
- Dimensions: 400 x 500 x 500 mm
- Weight: 25 kg.
Key Advantages:
• Unmatched Sensitivity: High sensitivity with no sample manipulation
• High Productivity: Increased analytical performance.
• Reliability: Consistent and reliable results with minimal maintenance.
• Ease of Use: User-friendly interface and automated operation.
• No Cross-Contamination: Ensures clean and accurate results.
Why Choose Refurbished?
Purchasing a refurbished items from LabRulez provides exceptional value without compromising on quality. Our refurbishment process includes:
- Thorough Inspection and Testing: Each unit undergoes rigorous testing to ensure it meets original performance specifications.
- Updated Components: All critically worn or malfunctioning components and materials are replaced with new ones to extend the life and reliability of the modules after installation and to meet all manufacturer's performance requirements.
- Cost Efficiency: Save up to 70% of the cost compared to buying a new module or part, freeing up budget for other important lab expenses.
Why Buy from LabRulez?
LabRulez is committed to providing high-quality, reliable laboratory equipment at competitive prices. With our extensive experience in refurbishing and reselling scientific instruments, we guarantee:
- Expert Support: Our fully trained and experienced team of specialists is available to assist with installation, operation, and troubleshooting.
- Flexible Payment Options: Choose from a range of payment methods that suit your procurement process.
- Fast and Secure Shipping: Get your equipment delivered quickly and safely to your lab.
