With its cutting-edge technology and user-friendly interface, the HTC PAL Autosampler ensures accuracy, reliability, and efficiency in sample handling and injection processes for your HPLC system.

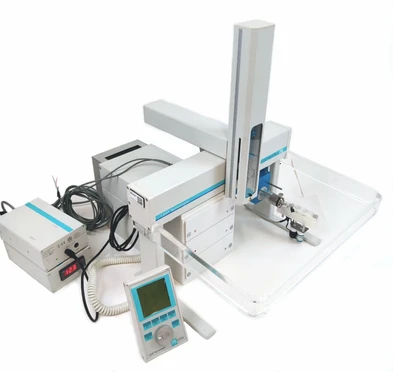

Configuration of the available system:
- MV 02-01A Injection Valve Drive
- MN-0100 Power Supply Module
- HTC PAL MXY 04-01A Autosampler
- MC 04-01 Pal Stack Cooler
- MN-03-00 Peltier Power Supply

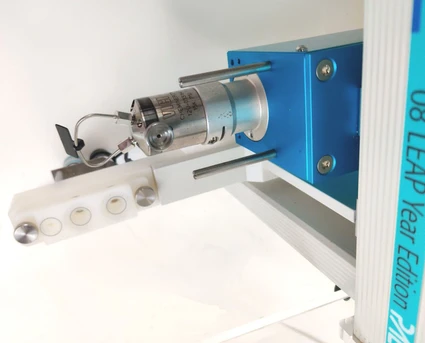

- MZ 01-00F Autosampler Injector Arm
- MSU 014-00A 100 uL Syringe Holder
Benefits
- Increased Efficiency: Automates high-volume sample processing.
- Enhanced Data Quality: Precise and consistent sample handling leads to reliable and reproducible results.
- Cost-Effective: Reduces the need for repeat analyses.
- Scalability: Suitable for both small-scale research but also large-scale production environment and control laboratories.
Key Features
- High Throughput: Capable of handling up to 648 samples, making it ideal for large-scale analyses.
- Versatility: Compatible with a wide range of sample formats, including vials, microplates, and well plates.
- Precision and Accuracy: Advanced robotic arm ensures consistent and accurate sample injection, minimizing variability.
- User-Friendly Software: Intuitive control software for easy programming and operation.
- Temperature Control: Integrated cooling and heating options to maintain sample integrity.
- Flexible Integration: Easily integrates with various HPLC systems and other analytical instruments.
Technical Specifications
- Sample Capacity: Up to 648 samples
- Sample Formats: 2 mL vials, 96/384 well plates
- Injection Volume: 0.1 µL to 100 µL
- Cycle Time: As low as 20 seconds per sample
- Temperature Range: 4°C to 70°C (with cooling/heating options)
- Precision: < 0.5% RSD
- Dimensions: 570 mm (W) x 510 mm (H) x 600 mm (D)
- Weight: 25 kg
