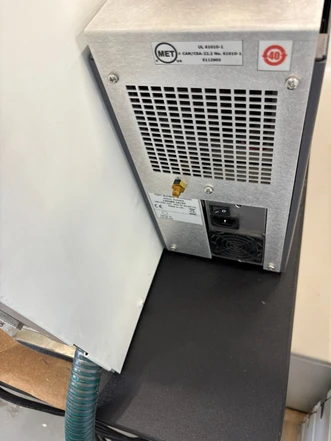

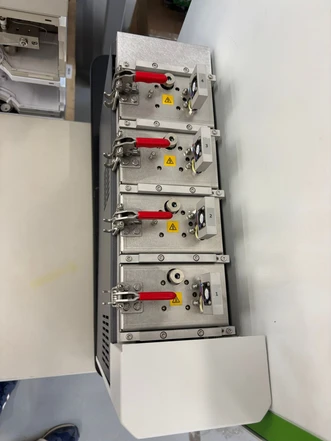

The Markes Micro-Chamber/Thermal Extractor M-CTE250 is a compact four-chamber system designed for rapid screening of volatile and semi-volatile organic compound (VOC and SVOC) emissions released from products and materials. Each 114 mL chamber supports sampling from ambient temperature up to 250 °C. Released compounds are swept from the chambers by a controlled flow of clean air or gas and collected onto sorbent tubes for subsequent TD–GC–MS analysis.
The system enables simultaneous testing of up to four samples and can be used to assess both surface and bulk emissions. Typical applications include construction materials, automotive trim, consumer products, and profiling of volatile compounds released from food and fragranced products. Formaldehyde can also be collected using DNPH cartridges.
Key Features
- Four chambers for simultaneous testing of up to four samples
- 114 mL chamber volume
- Temperature range from ambient to 250 °C
- Rapid VOC and SVOC emission screening
- Sorbent-tube sampling for subsequent TD–GC–MS analysis
- Surface and bulk emission testing
- DNPH cartridge sampling for formaldehyde
- High- and low-flow operating ranges
- Optional humidification and permeation accessories
Technical Specifications
- Manufacturer: Markes International
- Model: M-CTE250
- Product type: Micro-Chamber/Thermal Extractor
- Application: VOC and SVOC emission screening
- Number of chambers: 4
- Chamber volume: 114 mL
- Temperature range: ambient to 250 °C
- High flow range: 50–500 mL/min per chamber
- Low flow range: 10–70 mL/min per chamber
- Gas: clean air or nitrogen; helium compatible
- Gas pressure: 0.69–4.15 bar (10–60 psig)
- VOC/SVOC sampling: sorbent tubes
- Dimensions (H × W × D): 41.5 × 16 × 52 cm
- Weight: 15 kg
