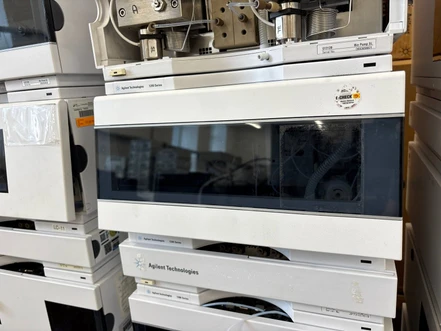

The Agilent 1200 High Performance Autosampler SL (G1367C) is a high-pressure automated sample injector designed for fast and reproducible HPLC workflows. The SL version supports operation at pressures up to 600 bar and provides precise automated sample introduction for high-performance liquid chromatography. Flexible support for vials and microplates makes it suitable for routine laboratories, method development, and high-throughput applications.
Technical Specifications:
- Injection Volume Range: 0.1 – 100 µL in 0.1 µL increments; up to 1500 µL with multiple draw (hardware modification required).
- Injection Precision:
- < 0.25% RSD for 5 – 100 µL.
- < 1% RSD for 1 – 5 µL.
- Pressure Range: 0 – 600 bar (0 – 8700 psi).
- Sample Viscosity Range: 0.2 – 5 cP.
- Sample Capacity:
- 2 microplates + 10 × 2 mL vials
- up to 108 × 2 mL vials in two 54-position trays plus 10 additional vials
- 30 × 6 mL vials in two 15-position trays
- Eppendorf tubes with appropriate trays
- 96- and 384-well microplates
- Injection Cycle Time: Typically < 17 seconds using standard conditions (default draw speed: 100 µL/min; default eject speed: 100 µL/min; injection volume: 1 µL).
- Carryover: Typically < 0.01% under specified conditions.
- Communications:
- CAN
- RS-232C
- APG Remote
- Safety Features: Leak detection and safe leak handling, low voltages in maintenance areas, error detection and display.
- GLP Features: Early maintenance feedback (EMF), electronic records of maintenance and errors.
Physical Specifications
- Dimensions (H × W × D): approximately 200 × 345 × 440 mm
- Weight: approximately 15.5 kg
- Power Supply: 100–240 VAC
- Frequency: 50/60 Hz
- Maximum Power Consumption: 200 W
- Ambient Operating Temperature: 4–55 °C
