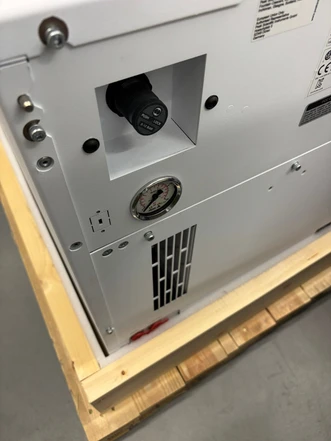

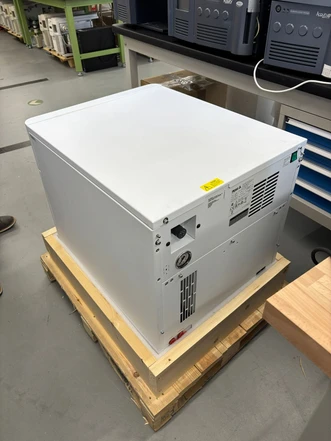

The Peak Scientific Genius XE 35 is a standalone nitrogen generator designed to provide a reliable on-demand nitrogen supply for LC-MS and other laboratory applications. With an integrated compressor, the system requires no external compressed-air source and delivers nitrogen at flow rates up to 35 L/min and pressures up to 8 bar (116 psi).
The generator uses Multi-Stage Purification™ technology to provide nitrogen with a purity of 95–99.5%, depending on the required flow rate. The integrated PeakOS™ touchscreen interface provides system control, diagnostics and service information, while Electronic Compressor Optimization™ (ECO) technology supports efficient compressor operation. Typical applications include LC-MS, CAD, ELSD and sample preparation.
Key Features
- Nitrogen flow up to 35 L/min
- Output pressure up to 8 bar (116 psi)
- Nitrogen purity of 95–99.5%
- Integrated air compressor
- Multi-Stage Purification™ technology
- PeakOS™ touchscreen interface
- Electronic Compressor Optimization™ (ECO)
- Designed for LC-MS, CAD, ELSD and sample preparation
- Noise level below 56 dBA
- Standalone laboratory design
Technical Specifications
- Manufacturer: Peak Scientific
- Model: Genius XE 35
- PN (120 V): 3300807
- Gas: Nitrogen
- Maximum gas flow: 35 L/min
- Nitrogen purity: 95–99.5%
- Maximum outlet pressure: 8 bar / 116 psi
- Hydrocarbon content: <1 ppm
- Gas outlet: 1 × 1/4" BSPP
- Start-up time: 30 min
- Voltage: 120 V AC ±10%
- Frequency: 50/60 Hz
- Current: 12 A
- Power consumption: 960 VA
- Noise level: <56 dBA
- Dimensions (H × W × D): 650 × 570 × 710 mm
- Weight: 92 kg
