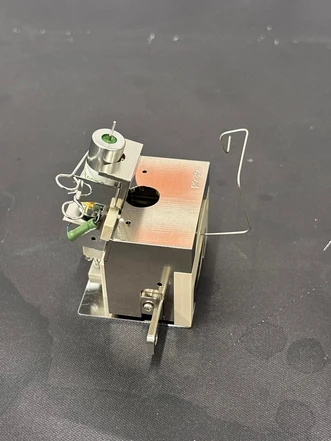

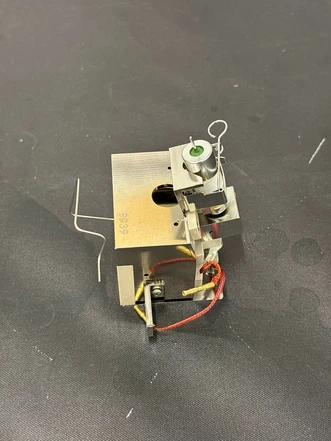

The Agilent G2571-80000 is a high-energy dynode (HED) electron multiplier designed for Agilent 6400 Series (64XX) Triple Quadrupole LC/MS systems. Ions striking the high-energy dynode generate secondary electrons, which are subsequently amplified by the electron multiplier.
The off-axis detector design helps reduce the influence of neutral species and prevents ions from directly striking the electron multiplier surface.
Key Features
- High-energy dynode (HED) electron multiplier
- High-gain detector assembly
- Designed for Agilent 6400 Series Triple Quadrupole LC/MS systems
- Ion-to-electron conversion before electron multiplication
- Off-axis detector design helps reduce interference from neutral species
- Replacement detector component for LC/MS/MS systems
Technical Specifications
- Manufacturer: Agilent Technologies
- PN: G2571-80000
- Product type: High-energy dynode electron multiplier
- Configuration: High gain, LN
- Application: Ion detection in Triple Quadrupole LC/MS
- Compatibility: Agilent Triple Quad 64XX Series
