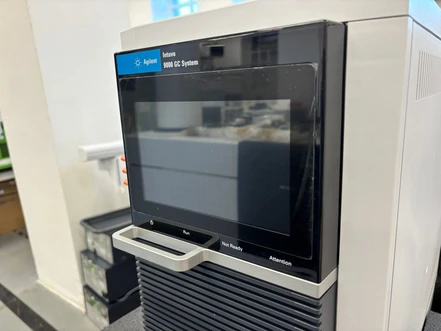

The Agilent Intuvo 9000 GC System with a split/splitless (S/SL) inlet and flame ionization detector (FID) is a modern gas chromatography platform developed for high analytical performance, precise chromatographic control, and simplified maintenance. The Intuvo system uses direct column heating rather than a conventional oven, allowing faster heating and cooling, more efficient analytical workflows, and reduced energy consumption.
The offered system is equipped with a split/splitless (S/SL) inlet with electronic pneumatic control (EPC) and a flame ionization detector (FID). The Intuvo 9000 platform also supports configurations with TCD, ECD, NPD, FPD, and SCD/NCD detectors, as well as single- and triple-quadrupole mass spectrometers.
The patented Click-and-Run connection and Smart ID Key technology simplify chromatographic column replacement, identification, and setup. Ferrule-free connections help minimize the risk of leaks, while the Guard Chip protects the analytical column from contamination and helps extend column lifetime. Precise pressure control, automatic leak checking, and integrated diagnostics support reliable operation in both routine and research GC applications.
Key Features
- Split/splitless (S/SL) inlet with full electronic pneumatic control
- Flame ionization detector (FID)
- Expandable with TCD, ECD, NPD, FPD, SCD/NCD, or MS
- Click-and-Run technology for rapid column replacement
- Integrated Guard Chip for column protection
- Smart ID Key for automatic column identification
- Color touchscreen with built-in contextual help
- Web interface for remote system monitoring
- Automatic leak checking
- Automatic compensation for ambient pressure and temperature changes
- Pressure control resolution of 0.001 psi
- Compact footprint requiring approximately half the bench space of a conventional GC
Configuration options
- Autosampler Agilent 7693A GC Autosampler G4513A (Second-hand)
- TCD detector or GC/MS Agilent 5975, 5977, 7000, 7010
- Chromatography software Agilent OpenLab or DataApex Clarity
Technical Specifications:
Gas Chromatograph
- Model: Agilent Intuvo 9000 GC
- Product number: G3950A
- Direct-heating column architecture
- Retention time repeatability: <0.008% or <0.0008 min
- Peak area repeatability: <1% RSD
Installed Configuration
- Inlet: split/splitless (S/SL)
- Detector: flame ionization detector (FID)
Supported Modules
- Inlets: S/SL, MMI
- Other supported detectors: TCD, ECD, NPD, FPD, SCD/NCD
- Compatible with single and triple quadrupole GC/MS
- Supports up to four detector signals
Chromatographic System
- Up to two 30 m × 0.320 mm capillary columns or one 60 m × 0.320 mm column
- Column IDs: 0.150–0.320 mm
- Operating temperature: Ambient +10 °C to 450 °C
- Temperature resolution: 0.1 °C
- Up to 20 temperature ramps and 21 plateaus
- Maximum heating rate: 250 °C/min
- Cool-down from 450 °C to 50 °C in less than 3 minutes
- Maximum run time: 999.99 minutes
Electronic Pneumatic Control (EPC)
- Pressure resolution: 0.001 psi
- Pressure setting increments: 0.001 psi from 0 to 99.999 psi; 0.01 psi from 100 to 150 psi
- Pressure range: 0–100 or 0–150 psig, depending on configuration
- Selectable units: psi, kPa, or bar
- Constant pressure, pressure ramp, constant flow, and flow ramp modes
- Automatic atmospheric pressure and temperature compensation
- Automatic leak checking
- Supports He, H₂, N₂, and Ar/CH₄ carrier gases
Split/Splitless Inlet
- Maximum operating temperature: 400 °C
- Split ratios up to 12,500:1
- Splitless mode with pressure pulsing
- Gas Saver mode
- Electronic septum purge control
- Total flow range:
- 0–500 mL/min (N₂)
- 0–1250 mL/min (He or H₂)
- Turn-Top inlet sealing system
- Optional inert inlet configuration
