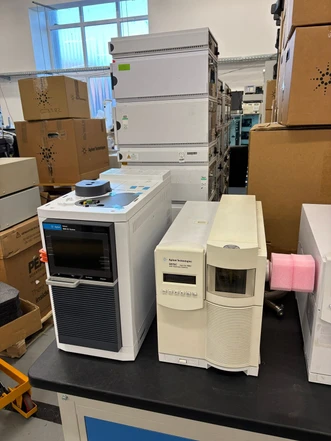

The Agilent Intuvo 9000 GC System with a split/splitless (S/SL) inlet is a modern gas chromatography platform designed for high analytical performance, precise control of chromatographic conditions, and simplified maintenance. The Intuvo architecture uses direct column-heating technology instead of a conventional oven, accelerating system heating and cooling, enabling analyses to be performed more quickly, and reducing energy consumption.
The offered configuration is equipped with a split/splitless (S/SL) inlet with electronic pneumatic control (EPC). The Intuvo 9000 supports configurations with FID, TCD, ECD, NPD, FPD, and SCD/NCD detectors or with a single- or triple-quadrupole mass spectrometer.
The patented Click-and-Run connection and the Smart ID Key simplify chromatographic column replacement, identification, and setup. Ferrule-free connections reduce the risk of leaks, while the Guard Chip protects the analytical column from contamination and helps extend its service life. With precise pressure control, automatic leak checking, and integrated diagnostic functions, the system provides a versatile solution for routine and research GC applications.
Key Features
- Split/splitless (S/SL) inlet with full electronic pneumatic control
- Expandable with FID, TCD, ECD, NPD, FPD, SCD/NCD, or MS detectors
- Click-and-Run technology for rapid column replacement
- Integrated Guard Chip for column protection
- Smart ID Key for automatic column identification

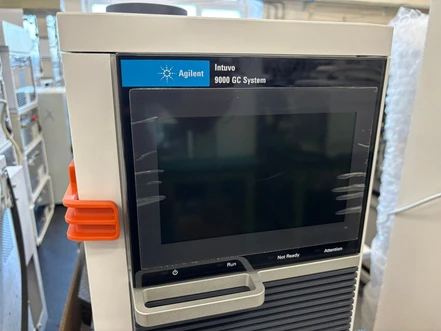

- Color touchscreen with built-in contextual help
- Web interface for remote system monitoring
- Automatic leak checking
- Automatic compensation for ambient pressure and temperature changes
- Pressure control resolution of 0.001 psi
- Compact footprint requiring approximately half the bench space of a conventional GC
Configuration options
- Autosampler Agilent 7693A GC Autosampler G4513A (Second-hand)
- TCD detector, FID or GC/MS Agilent 5975, 5977, 7000, 7010
- Chromatography software Agilent OpenLab or DataApex Clarity
Technical Specifications:
Gas Chromatograph
- Model: Agilent Intuvo 9000 GC
- Product number: G3950A
- Direct-heating column architecture
- Retention time repeatability: <0.008% or <0.0008 min
- Peak area repeatability: <1% RSD
Supported Modules
- Inlets: S/SL, MMI
- Optional detectors: FID, TCD, ECD, NPD, FPD, SCD/NCD
- Compatible with single and triple quadrupole GC/MS
- Supports up to four detector signals
Chromatographic System
- Up to two 30 m × 0.320 mm capillary columns or one 60 m × 0.320 mm column
- Column IDs: 0.150–0.320 mm
- Operating temperature: Ambient +10 °C to 450 °C
- Temperature resolution: 0.1 °C
- Up to 20 temperature ramps and 21 plateaus
- Maximum heating rate: 250 °C/min
- Cool-down from 450 °C to 50 °C in less than 3 minutes
- Maximum run time: 999.99 minutes
Electronic Pneumatic Control (EPC)
- Pressure resolution: 0.001 psi
- Pressure setting increments: 0.001 psi from 0 to 99.999 psi; 0.01 psi from 100 to 150 psi
- Pressure range: 0–100 or 0–150 psig, depending on configuration
- Selectable units: psi, kPa, or bar
- Constant pressure, pressure ramp, constant flow, and flow ramp modes
- Automatic atmospheric pressure and temperature compensation
- Automatic leak checking
- Supports He, H₂, N₂, and Ar/CH₄ carrier gases
Split/Splitless Inlet
- Maximum operating temperature: 400 °C
- Split ratios up to 12,500:1
- Splitless mode with pressure pulsing
- Gas Saver mode
- Electronic septum purge control
- Total flow range:
- 0–500 mL/min (N₂)
- 0–1250 mL/min (He or H₂)
- Turn-Top inlet sealing system
- Optional inert inlet configuration
