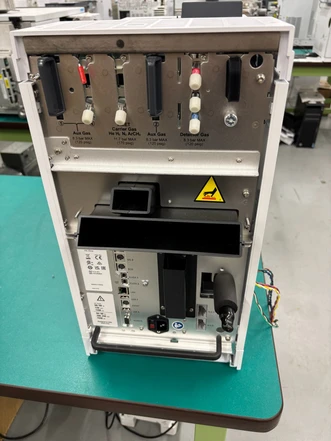

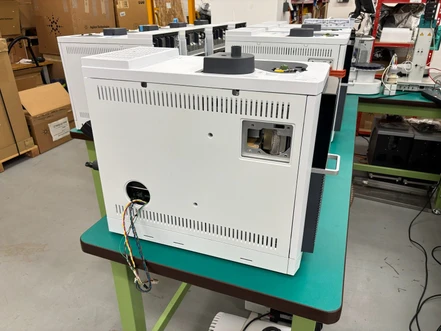

The Agilent Intuvo 9000 GC System (G3950A), configured with a Split/Splitless (S/SL) inlet, Flame Ionization Detector (FID), Auxiliary Electronic Pneumatic Control (AUX EPC), and GC/MS interface, is a flexible gas chromatography platform designed for laboratories performing both routine quantitative analyses and mass spectrometric compound identification. Its modular architecture allows the combination of highly sensitive FID detection with the analytical capabilities of Agilent GC/MS systems, while patented Direct Heating technology and advanced electronic pneumatic control improve analytical throughput, reproducibility, and ease of maintenance.
Technical Specifications
System Configuration
- Model: Agilent Intuvo 9000 GC System
- Part Number: G3950A
- Inlet: Split/Splitless (S/SL)
- Detectors: FID + MS
- Auxiliary Electronic Pneumatic Control (AUX EPC)
Gas Chromatograph
- Direct Heating technology
- Maximum operating temperature: 450 °C
- Heating rates up to 250 °C/min
- Cool-down from 450 °C to 50 °C in less than 3 minutes
- Up to 20 temperature ramps and 21 plateaus
- Supports capillary columns from 0.15 to 0.32 mm ID
Split/Splitless Inlet
- Maximum operating temperature: 400 °C
- Split ratios up to 12,500:1
- Pressure-pulsed splitless operation
- Turn-Top liner replacement system
- Gas Saver mode
- Electronic septum purge control
FID
- Minimum detectable level: <1.4 pg C/s
- Linear dynamic range: >10⁷
- Data acquisition up to 1000 Hz
- Automatic flame ignition and re-ignition
Auxiliary EPC
- Independent electronic control of auxiliary pneumatic channels
- Suitable for GC/MS transfer lines, backflush systems, Dean Switches, and other pneumatic accessories
- Pressure control resolution up to 0.001 psi
Typical Applications
- Routine GC/FID analysis
- GC/MS analysis
- Pharmaceutical laboratories
- Food and beverage testing
- Environmental laboratories
- Forensic analysis
- Petrochemical applications
- Research and development
