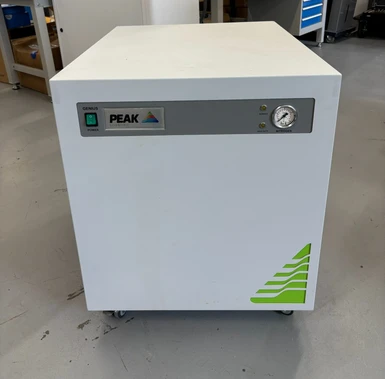

The Peak Scientific Genius NM32LA is a premium laboratory nitrogen generator engineered to provide continuous, high-quality nitrogen for today's LC-MS platforms. Representing more than a decade of innovation in on-site gas generation, the Genius NM32LA has become one of the most widely adopted nitrogen generators for analytical laboratories worldwide.
Combining proven membrane technology with high-performance integrated compressors and intelligent system monitoring, the generator delivers up to 32 L/min of laboratory-grade nitrogen without requiring compressed gas cylinders or an external air supply. Designed for maximum uptime, minimal maintenance, and low lifetime operating costs, the Genius NM32LA provides laboratories with a dependable long-term gas generation solution.
Key Features
- Premium nitrogen generator for LC-MS
- Nitrogen flow up to 32 L/min
- Self-contained operation with integrated compressors
- No external compressed air required

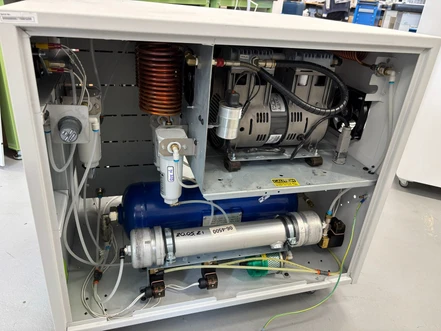

- Proven membrane nitrogen generation technology
- On-demand nitrogen production

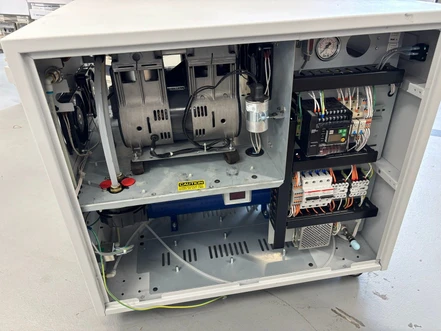

- Latest-generation compressors housed in an insulated chamber
- Low noise and vibration
- Duty and service indicators for preventive maintenance planning
- Robust design for continuous laboratory operation
- Minimal installation requirements
- Compact footprint for under-bench installation
- Integrated wheels for easy mobility
- Safe alternative to high-pressure gas cylinders
- Low total cost of ownership
- Proven technology trusted by laboratories worldwide
Technical Specifications
Generator Type
- Membrane nitrogen generator
- Integrated oil-free compressors
Performance
- Maximum nitrogen flow: 32 L/min
- Maximum outlet pressure: 100 psi (6.9 bar)
Gas Quality
- Particles: <0.01 μm
- Suspended liquids: None
- Phthalates: None
Operating Conditions
- Operating temperature: 5–35 °C
- Maximum relative humidity: 80% non-condensing
- Maximum altitude: 2000 m
Electrical Requirements
- 230 V
- 50/60 Hz
- 7.0 A
- Power consumption: 1610 W
Physical parameters
- Gas Outlet: 1 × 1/4" BSP female
- Noise Level: 59 dB
- Dimensions: 713 × 600 × 750 mm (H × W × D)
- Weight: 102.5 kg
Typical Applications
- LC-MS
- LC-MS/MS
- Pharmaceutical analysis
- Biopharmaceutical research
- Food analysis
- Environmental testing
- Clinical laboratories
- Academic research
- Quality control laboratories
