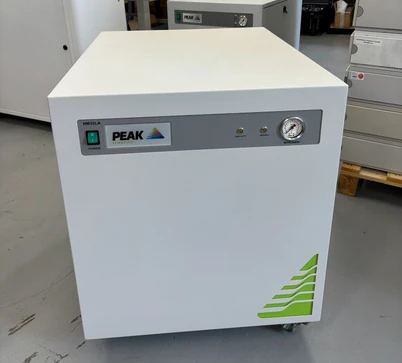

The Peak Scientific Genius NM32LA is designed for laboratories seeking a reliable and economical alternative to compressed nitrogen cylinders for LC-MS operation. Using proven membrane separation technology and integrated compressors, the system generates laboratory-grade nitrogen on demand without requiring an external compressed air supply.
Capable of delivering up to 32 L/min of nitrogen, the generator supports the requirements of most modern LC-MS instruments. Gas is produced only when required, reducing operating costs while eliminating the inconvenience and safety concerns associated with handling high-pressure cylinders. Built for continuous operation, the Genius NM32LA combines long-term reliability with simple installation, quiet performance, and minimal maintenance requirements, making it an ideal choice for busy analytical laboratories.
Key Features
- Stand-alone nitrogen generator for LC-MS
- Nitrogen flow up to 32 L/min

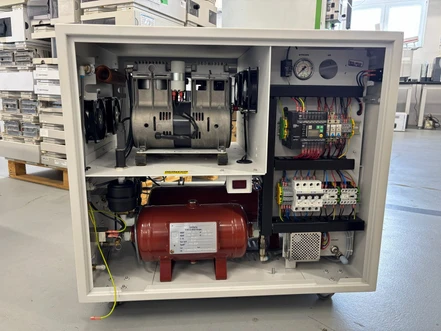

- Integrated compressors with no external air supply
- On-site nitrogen production
- On-demand gas generation
- Eliminates compressed gas cylinders
- Lower lifetime operating costs
- Duty and service status indicators
- Sound-insulated compressor chamber
- Low noise and vibration
- Fast installation with minimal setup
- Compact footprint for under-bench installation
- Integrated castors for easy movement
- Proven technology installed in thousands of laboratories worldwide
Technical Specifications
Performance
- Maximum nitrogen flow: 32 L/min
- Maximum outlet pressure: 100 psi (6.9 bar)
Technology
- Membrane nitrogen generation
- Integrated oil-free compressors
- On-demand gas production
Gas Quality
- Particles: <0.01 μm
- Phthalates: None
- Suspended liquids: None
Operating Conditions
- Operating temperature: 5–35 °C
- Maximum humidity: 80% non-condensing
- Maximum altitude: 2000 m
Electrical Requirements
- 230 V
- 50/60 Hz
- 7.0 A
- 1610 W
Physical parameters
- Gas Outlet: 1 × 1/4" BSP female
- Dimensions: 713 × 600 × 750 mm (H × W × D)
- Weight: 102.5 kg
Typical Applications
- LC-MS
- LC-MS/MS
- Pharmaceutical laboratories
- Bioanalytical laboratories
- Environmental testing
- Food analysis
- Clinical laboratories
- Research laboratories
