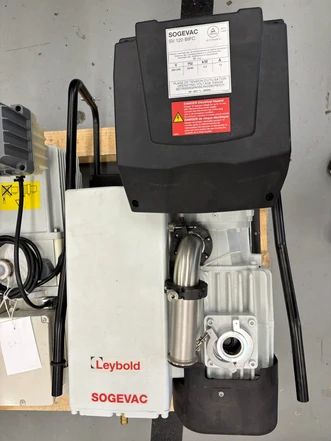

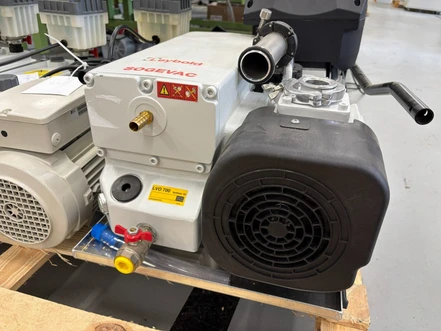

The Leybold SOGEVAC SV 120 BIFC is a single-stage oil-sealed rotary vane vacuum pump engineered for reliable rough vacuum generation. Delivering a pumping speed of 120 m³/h, the pump combines proven rotary vane technology with an integrated variable-frequency drive (BIFC) for energy-efficient and flexible operation.
The integrated variable-speed control automatically adapts pump performance to process demand, minimizing energy consumption while maximizing uptime and service life. Designed for continuous industrial operation, the SOGEVAC SV 120 BIFC provides dependable performance, simplified maintenance, and long service intervals.
Key Features
- Single-stage oil-sealed rotary vane vacuum pump
- Pumping speed up to 120 m³/h
- Integrated BIFC variable-frequency drive
- Variable-speed operation
- Energy-efficient vacuum generation
- Stable rough vacuum performance
- Continuous 24/7 operation
- Compact industrial design
- High reliability and long service life
- Oil-lubricated rotary vane technology
- Low maintenance requirements
- Easy service access
- Suitable for laboratory and industrial vacuum applications
Technical Specifications
Pump Type
- Single-stage oil-sealed rotary vane vacuum pump
- Integrated variable-frequency drive (BIFC)
Pumping Performance
- Pumping speed: 120 m³/h
Motor
- Rated power: 2.2 kW
- Supply voltage: 200–240 V
- Operating frequency: 50/60 Hz
- Integrated frequency converter
Motor Specifications
- Manufacturer: Nidec Leroy-Somer
- Efficiency class: IE2
- Protection class: IP40
- Duty rating: S1 continuous duty
- Speed: 1460 rpm (50 Hz)
- Speed: 1754 rpm (60 Hz)
Vacuum Technology
- Oil-sealed rotary vane technology
- Stable rough vacuum generation
- Continuous industrial operation
Construction
- Compact floor-mounted design
- Integrated motor drive
- Heavy-duty industrial construction
- Accessible oil fill and inspection ports
- Designed for easy maintenance
Typical Applications
- Vacuum furnaces
- Freeze dryers
- Vacuum packaging
- Analytical instruments
- Vacuum coating systems
- Chemical processing
- Industrial manufacturing
- Laboratory vacuum systems
