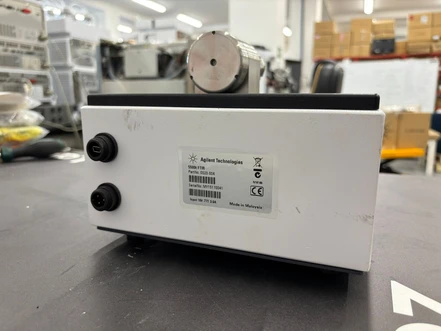

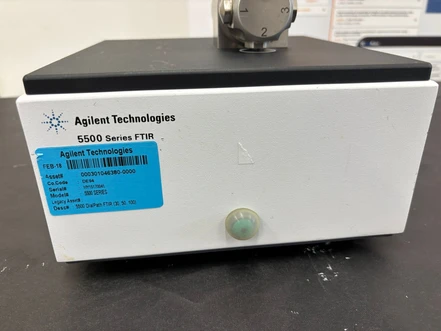

The Agilent 5500 DialPath FTIR is a compact FTIR spectrometer designed for transmission analysis of liquid samples. The instrument is equipped with a DialPath sampling module featuring a selectable optical pathlength of 30, 50, or 100 μm, allowing measurements to be optimized for different sample types and concentrations. Its compact footprint, intuitive software, and ease of operation make it a practical solution for routine qualitative and quantitative FTIR analysis.
Key Features
- Compact FTIR spectrometer for laboratory and at-line analysis
- DialPath sampling module for transmission analysis of liquid samples
- Selectable optical pathlength of 30, 50, or 100 μm
- Simple analysis of liquid samples from a single drop
- Intuitive MicroLab software with guided workflows
- Color-coded alerts for rapid result evaluation
- MicroLab Quant for quantitative method development
- Optional MicroLab Pharma software supporting data integrity requirements
Technical Specifications
- Type: Compact FTIR spectrometer
- Configuration: DialPath FTIR
- Sampling module: DialPath
- Optical pathlength: 30 / 50 / 100 μm
- Spectral range: 4,000–650 cm⁻¹
- Spectral resolution: 2–16 cm⁻¹
- Control software: MicroLab or MicroLab Expert
- Power requirements: 100–240 VAC, 50/60 Hz
- Dimensions (W × D × H): 20 × 20 × 11 cm
- Weight: 3.6 kg
- Spectral libraries: Wide range of application-specific spectral libraries available
