The Peak Scientific Genius NM32LA is a highly reliable laboratory nitrogen generator specifically designed for LC-MS applications. Representing the culmination of more than a decade of on-site gas generation development, the NM32LA has become a proven nitrogen solution for laboratories worldwide. The system delivers up to 32 L/min of laboratory-grade nitrogen and is compatible with most modern LC-MS instruments.
Key Features
- Nitrogen generator designed for LC-MS applications
- Nitrogen output up to 32 L/min
- Integrated compressor with no external air supply required
- Compact laboratory design
- Low operating costs compared to gas cylinders
- Proven and reliable gas generation technology
- Quiet operation with insulated compressor chamber
- Reduced vibration levels
- Service indication for preventative maintenance planning
- Minimal installation requirements
- Safe laboratory-grade nitrogen supply
- 12-month comprehensive onsite warranty
Technical Specifications
- Max Flow Rate: 32 L/min
- Max Pressure: 100 psi / 6.9 bar
- Max Relative Humidity: 80% Non-Condensing
- Max Altitude: 2000 Metres
- Particles: < 0.01μm
- Gas Outlets: 1x 1/4” BSP Female
- Phthalates: None
- Suspended Liquids: None
- Operating Temperature: 5ºC - 35ºC / 41ºF - 95ºF
- Electrical Requirements: 230v 50/60Hz 7.0A
- Power Consumption: 1610 Watts
- Noise Level: 59 dB
- Generator Dimensions (HxWxD): 713 x 600 x 750 mm/28.1 x 23.6 x 29.5 in
- Generator Weight: 102.5 Kg (226 lbs)

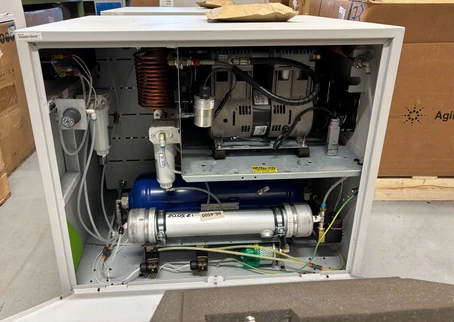

Integrated Compressor System
The generator features high-specification latest-generation compressors:
- Fully integrated compressor solution
- Insulated chamber for low noise operation
- Reduced laboratory vibration
- Stable and reliable nitrogen production
- Simplified installation and operation
Economical Operation
The Genius NM32LA provides:
- Low lifetime operating costs
- Elimination of gas cylinder handling
- Continuous onsite nitrogen generation
- Improved laboratory safety
- Reduced downtime caused by cylinder replacement
