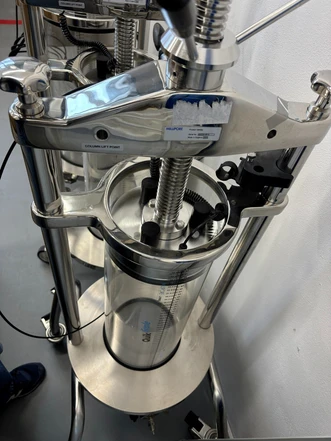

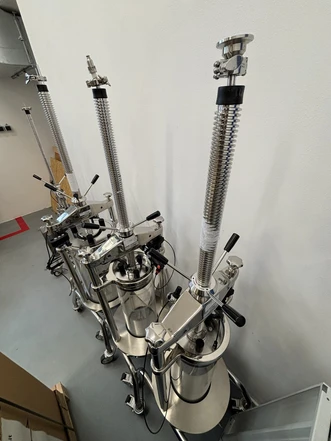

Millipore QuikScale® GAG 200 × 550 is a large-scale biochromatography purification column designed for efficient downstream processing and scalable biomolecule purification workflows. The column combines robust construction, optimized flow distribution, and high bed volume capacity, making it suitable for pilot-scale and production-scale protein purification applications.
Key Features
- Large-scale biochromatography purification column
- Suitable for protein purification applications
- Bed volume up to 17.0 L
- Optimized flow distribution for uniform chromatography performance
- Robust stainless steel and borosilicate glass construction
- Compatible with a broad range of chromatography media
- CIP-compatible design for simplified cleaning procedures
- Stable operation under elevated pressure conditions
- Designed for scalable downstream processing workflows
- Reduced dead volume and improved process reproducibility
Technical Specifications
- Bed Volume: 0.31–17.0 L
- Bed Height: 10–540 mm
- Column Diameter: 20 cm (7.9 in.)
- Cross-sectional Area: 314 cm²
- Column Height: 550 mm
- Length: 55.1 cm (21.7 in.)
- Operating Temperature: 2–30 °C
- Maximum Inlet Pressure: 4.8 bar (70 psi)
- Maximum Differential Pressure: 4.8 bar (70 psid) at 25 °C
- Fitting: 3/4 in. sanitary clamp (1 in. diameter flange)
Materials
- 316 stainless steel flow cell
- 316L stainless steel external surfaces
- Borosilicate glass column tube
- Polypropylene flow cell components
- Polypropylene external surfaces
- EPDM rubber seals
- Stainless steel bed support (1.4539)
2 columns abailable at warehouse
