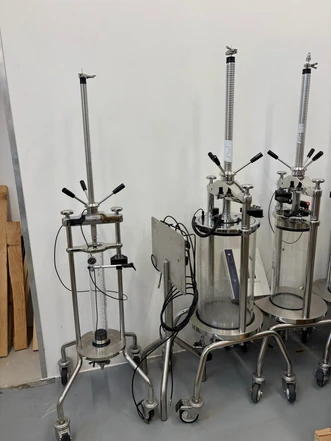

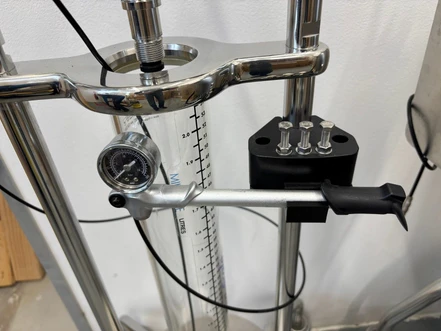

Millipore QuikScale® Chromatography Columns are high-performance biochromatography columns designed for scalable biomolecule purification from pilot-scale development to full manufacturing processes. Featuring robust construction, high flow capacity, and optimized flow distribution, these columns deliver fast, reproducible, and efficient chromatographic separations across a wide range of chromatography media.
Key Features
- Biochromatography purification column for scalable processes
- Suitable for protein purification applications
- High flow rates up to 1000 cm/h
- Robust construction for long-term operation
- Optimized flow distribution for uniform bed utilization
- Fast and simple column packing and unpacking
- Tool-free handling and maintenance
- Compatible with a wide range of chromatography media
- CIP-compatible design for simplified cleaning
- Reduced dead volume and carry-over risk
- Modular configuration with broad accessory support
Technical Specifications
- Product: Millipore QuikScale® Chromatography Column
- Bed Volume: 0.04–2.08 L
- Maximum Working Volume: 2.1 L
- Bed Height: 10–540 mm
- Column Diameter: 7.0 cm
- Cross-sectional Area: 38.5 cm²
- Column Height: 550 mm
- Length: 55.1 cm
- Maximum Inlet Pressure: 6.9 bar (100 psi)
- Maximum Differential Pressure: 7 bar (100 psid)
- Operating Temperature: 2–30 °C
- Fitting: 3/4" sanitary clamp
- Materials:
- 316 stainless steel flow cell
- 316L stainless steel external surfaces
- Borosilicate glass column tube
- Polypropylene components
- EPDM rubber seal
- Stainless steel bed support (1.4539)
