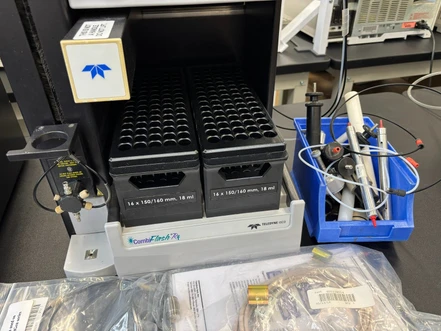

The Teledyne Isco CombiFlash Rf 200 is a compact flash chromatography system designed for high-productivity automated compound purification. The system features programmable gradients, UV/UV-Vis detection, automatic column and fraction rack recognition, and intuitive operation for modern laboratory workflows. Its compact footprint makes it ideal for use in chemical hoods and space-limited laboratories.
Key Features
- Automated flash chromatography system
- Programmable binary gradients
- Automatic column and fraction rack detection
- UV or UV-Vis detection capability
- Secondary wavelength monitoring
- Self-cleaning automatic injection valve
- Integrated air pump for column purging
- Solvent level sensing and waste bottle monitoring
- Compact design suitable for fume hoods
- Ideal for routine compound purification workflows
Technical Specifications
- Flow Rate: 5–200 mL/min
- Flow Accuracy: ±5%
- Maximum Pressure: 1379 kPa (200 psi)
- Pressure Accuracy: 5% full scale
- Gradient Formation: Binary gradient with 4 solvent inlets
- Detection: UV 200–360 nm or optional UV-Vis 200–780 nm
- Wavelength Accuracy: ±5 nm
- Peak Detection Modes: Slope / Threshold
- Flow Cell Pathlength: 0.1 mm
- Dimensions: 36 × 43 × 61 cm
- Weight: 24.5 kg
- Power Requirements: 100–240 VAC, 50/60 Hz
