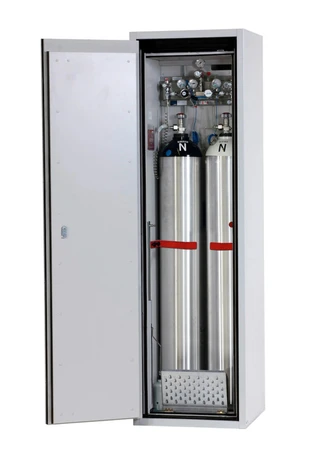

The asecos G90 fire-resistant cabinet is designed for the safe indoor storage of pressurized gas cylinders in laboratories and industrial facilities. It provides 90 minutes of fire resistance and is type-tested according to EN 14470-2, including compliance with the strict requirement limiting the temperature rise at the cylinder valve holder to 50 K.
Key Features
- Type-tested according to EN 14470-2 for gas cylinder storage
- 90-minute fire resistance (G90 classification)
- Maximum temperature rise at the valve holder limited to 50 K in accordance with EN 14470-2
- Storage capacity: 2 × 50-liter gas cylinders
- Integrated exhaust air connection (NW 75) on the cabinet roof
- Optional roof penetrations for gas supply connections
- High internal clearance for easy installation of regulators and fittings
- Safe and ergonomic cylinder handling via a robust fold-down ramp made of ribbed steel sheet
- Supplied complete with mounting rail for fittings, cylinder spacers, and securing straps
(gas cylinders and fittings not included) - Lockable single-wing door, right-hand hinged
- Adjustable feet for leveling on uneven floors
- Integrated grounding connection as standard
- Durable powder-coated finish in RAL 7035 (light grey)
Technical Specifications
- Installation location: Indoor use
- Fire resistance: 90 minutes
- Storage capacity: 2 × 50 L gas cylinders
- External dimensions (W × D × H): 598 × 615 × 2050 mm
- Internal dimensions (W × D × H): 477 × 425 × 1858 mm
- Door design: Single-wing, right-hand hinged
- Weight: 354.5 kg
2 pieces available at the warehouse
