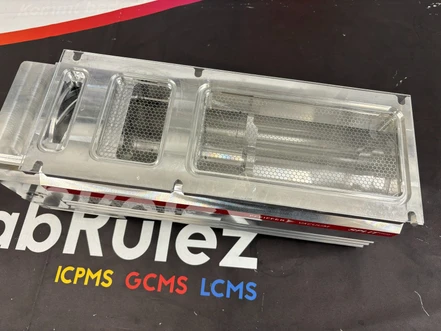

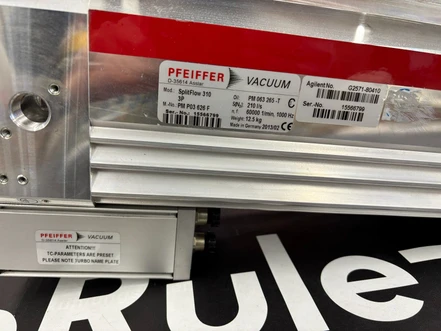

The Agilent/Pfeiffer Vacuum SplitFlow 310 Turbo Pump is a high-performance turbomolecular vacuum pump designed for analytical MS applications such as LC/MS. The SplitFlow architecture uses multiple rotor stages to efficiently achieve and maintain high vacuum levels and excellent pumping speed. Engineered for reliable service life and optimized high-vacuum performance, it supports fast pump-down and dynamic vacuum conditions in demanding laboratory environments.
Key Features
- Multi-stage SplitFlow design delivers efficient ion and gas transfer across stages for stable, deep vacuum
- Hybrid bearing system provides long operating life with minimal wear
- High pumping efficiency for both light and heavy gases
- Low vibration and quiet operation suitable for sensitive MS environments
- Robust construction for continuous laboratory operation
Technical Specifications
- Rotation speed: ~60,000 rpm (±2%)
- Pumping speed (N₂): ~290 L/s at primary inlet
- Pumping speed (He): ~310 L/s at primary inlet
- Compression ratio (N₂): >1 × 10⁵
- Weight: ~13 kg
- Fore-vacuum requirement: <10 hPa
