DataApex Clarity 9.0 Chromatography Software Released

The upgrade to the Clarity version 9.0 version is paid, a new user code is needed for this version. Customers who purchased their Clarity software after July 25th, 2022 are eligible for a free-of-charge upgrade under the condition they have registered their software. Please refer to the upgrade details.

💡 Download our free Clarity Demo version

💡 A detailed list of changes is available in whatsnew.

What is new in Clarity 9.0?

• Improvements of the Integration Algorithm – new algorithm Wave based on previous Experimental
• Batch dialog redesign, improved handling of calibration during reprocessing
• Improvements in Audit Trail
• Clarity design adjusted to the Windows 11 environment
• A new option Move down after Enter in Sequence Table to support barcode readers
• Updated SW upgrade policy including paid upgrades of major versions
• New and updated control modules

Batch Dialog

• Options regrouped to reflect the real workflow
• Calibration cloning from Batch issue fixed

DataApex: Batch Dialog in new in Clarity 9.0

Audit Trail

• Logging of system messages and pop-up windows improved
• It now contains info about the instrument and user

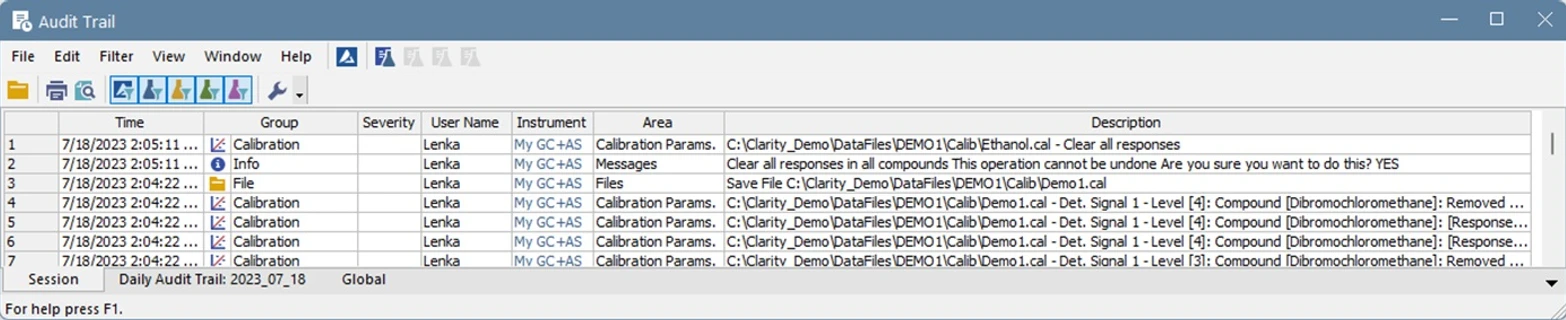

DataApex: Audit Trail in new in Clarity 9.0

Integration algorithm - WAVE

• New Wave Integration Algorithm based on previous Experimental algorithm

  • In most cases, integration using just Global Parameters and Integration Interval works better

• Selection of Integration Algorithm moved to the Integration tab

For more details refer to Clarity 9.0 vs 8.8 manual

DataApex: Integration algorithm - WAVE in new in Clarity 9.0

Barcode reader support in sequence table

• The Sequence Table - On Enter option defines where the focus moves in the Sequence table after pressing Enter:
  • Move Right – default option
  • Move Down – used for barcode readers emulating keyboard

DataApex: Barcode reader support in sequence table in new in Clarity 9.0

Updated SW upgrade policy

• New software license comes with free upgrades one-year period

• Major versions – upgrade

  • Change of the version number is before the dot - A.b.c.d
  • Includes the change of the user code
  • Are paid (unless the user is entitled to one-year free upgrade)

• Minor versions – update

  • Change of the version number is after the first dot - a.B.C.D
  • Free of charge

• We sell and provide support only for the latest version of Clarity

For more details refer to Clarity SW upgrade

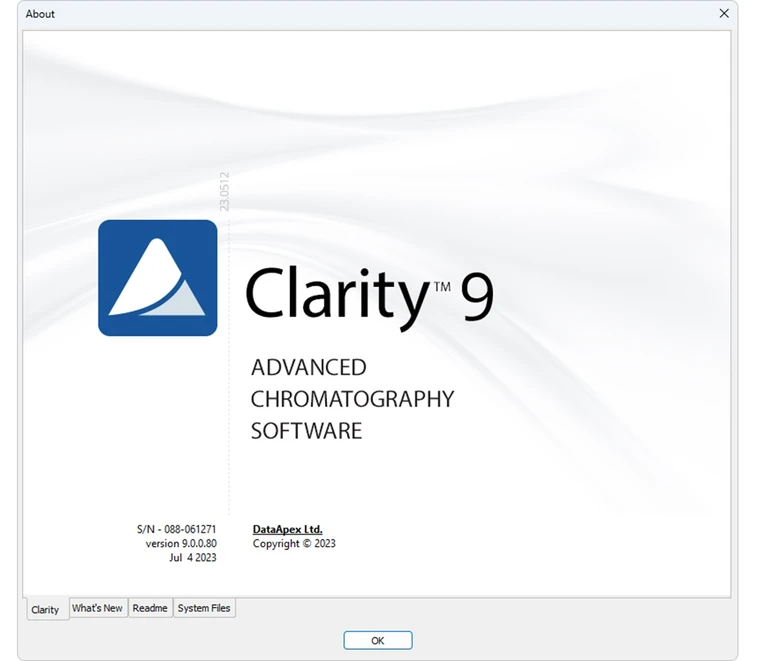

DataApex: Clarity 9 Advanced Chromatography Software

Other improvements and fixed bugs

• Fixed MS Search and NIST libraries result differences caused by sending the wrong spectral range from Clarity to NIST

• Improvements in the behavior of Fraction Collectors

• Better handling of method version to prevent memory exhaustion

• New warning when method size exceeds the limit

… and a lot more

New control modules

• HTA 2000H, 2000HT, 2100H
• QuadroCore MCore
• Shanghai Sunny Hengping Scientific Instrument GC-MS

... and many control modules have been updated and improved, for more see Changes in version 9.0.0 (25.07.2023)

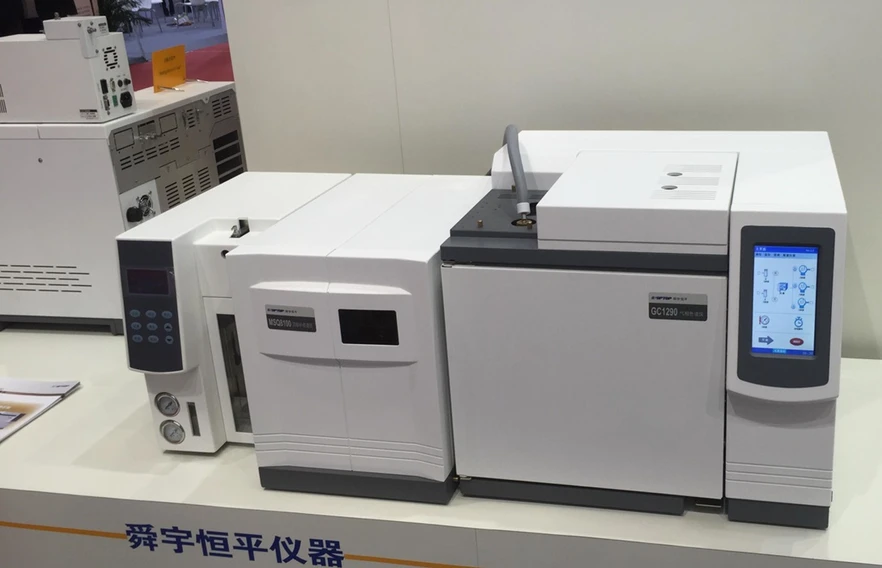

DataApex: Shanghai Sunny Hengping Scientific Instrument GC1290 + MSQ8100
